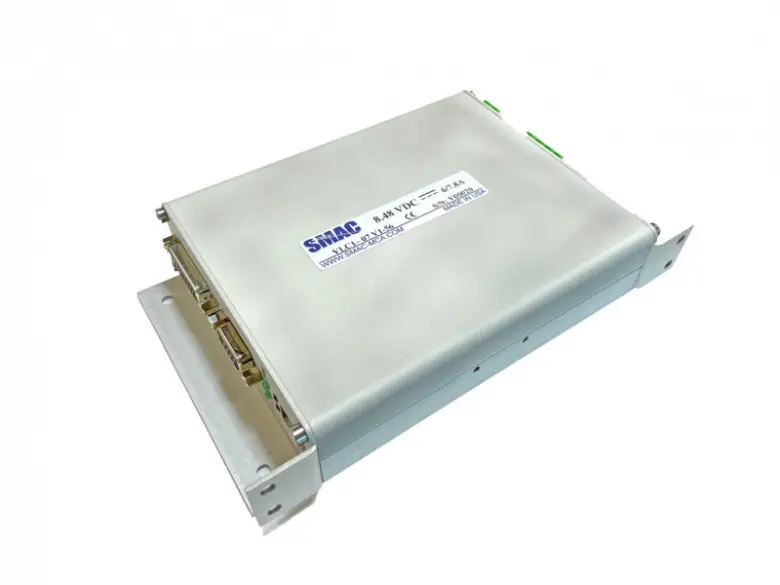

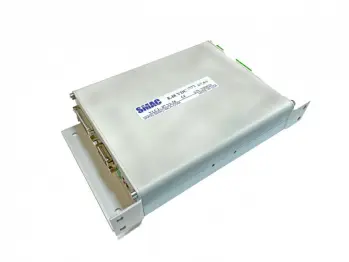

VLC-1-07 / VLC-1-13 Single Axis DC Brushed/Brushless Controller

(VLC-1-07 / VLC-1-13)
0
Request Info/Quote


The VLC-1-07 and VLC-1-13 controllers are a standalone integrated controller/servo drive that is used for the control of brushed/brushless industrial linear actuators and motors. The VLC-1-07 and VLC-1-13 implement a mnemonic type command instruction set via a standard serial (UART) communication interface. These commands can be executed directly or used to create programs that can be stored in the on-board flash memory.

Operating Modes
Position, Velocity, Torque (voltage- and current- based)
Filter Algorithm
PID
Max. Servo Loop Rate
100 μS
Trajectory Generator
Trapezoidal
Servo Position Feedback
Incremental Encoder with Index
Supply Voltage
+8 To +50 VDC
Output (Standard)
PWM (space-vector-modulated).
VLC-1-07: 6 A continuous, 7.8 A peak.
VLC-1-13: 10 A continuous, 13 A peak.
Current resolution
VLC-1-07: 2.93 mA.
VLC-1-13: 6.35 mA.
Custom current resolution can be made by request.
Motor Type
3-Phase Brushless, DC Brushed, DC Linear Actuator
PWM Frequency
20.0 KHz
Encoder and Index Input
Differential
Encoder Supply Voltage
5 VDC
Encoder Input Voltage
5.5 VDC Max., -0.1 VDC Min.
Encoder Count Rate
40 million encoder counts per second
Position Range
31 Bits
Velocity Range
31 Bits
Acceleration Range
31 Bits
Communication
> Serial (UART): non-isolated, 9600 baud default, selectable between 2400 – 460800
Protections
> Driver overtemperature at 150 degrees C
> Overcurrent
> Overload
> Reversed power supply polarity connection
> I2T
> (excessive) servo position error
Program space
> Macro storage: 7 kB (from firmware v1.52: 56286 bytes)
> Maximum number of macros: 256 (from firmware v1.53: 512)
> Maximum number of program registers: 2048
Digital I/O
8x Opto-isolated Digital Inputs w/Common:
> 24 V Level Input
8x Solid-state Relay Outputs w/Common:
> 200 mA Current
> Tolerant to 60 V
Dedicated Digital I/O
1x opto-isolated coarse home input
Analog I/O
2 input channels (differential): 0 to +/-10V With 12-Bit Resolution.
3 input channels (single-ended): 0 to +10V With 12-Bit Resolution.
2 output channels: 0-10V With 12-Bit Resolution.
STO
2x Opto-isolated STO Inputs:
> 24 V Level Input
1x Opto-isolated STO Feedback Output:
> 200 mA Current
> Tolerant to 60 V



VLC-X Editor Setup 1.2
Easy setup and tuning of control parameters for VLC series controllers.
